CoaXpress Camera Side IP core

Functions
This is a CoaXpress V1.1 compliant IP core.
This standard uses coaxial cable up to 6.25Gbps (actual rate 5Gbps) per lane.
Data rate can be increased up to 25Gbps with a 4 lane setup.
Cable length can be scaled from 40m ~ over 100m. Installation is not limited by distance.
This IP core implements parts in need of performance as hardware and parts that require flexibility as software on CPU in FPGA, satisfying both needs effectively.
Features
  • Supports sending stream packet, sending/receiving control packet, receiving trigger packet.
  • Auto idle insertion realizes image sending without frame buffer.
  • Using high speed transceiver in FPGA reduces PCB size
  • Minimum resources (4000LCs at 1lane)
  • Link speed can be changed from 1.25Gbps to 6.25Gbps
  • Supports 1, 2, 4 lanes.
Block Diagram
Supported FPGA
Xilinx®: Spartan®-6LXT(Up to 3.125Gbps), Kintex®-7, Virtex®-7, Artix®-7
Altera®: Cyclone® IV, Cyclone® V, Arria® II, Arria® V, Stratix® IV, Stratix® V

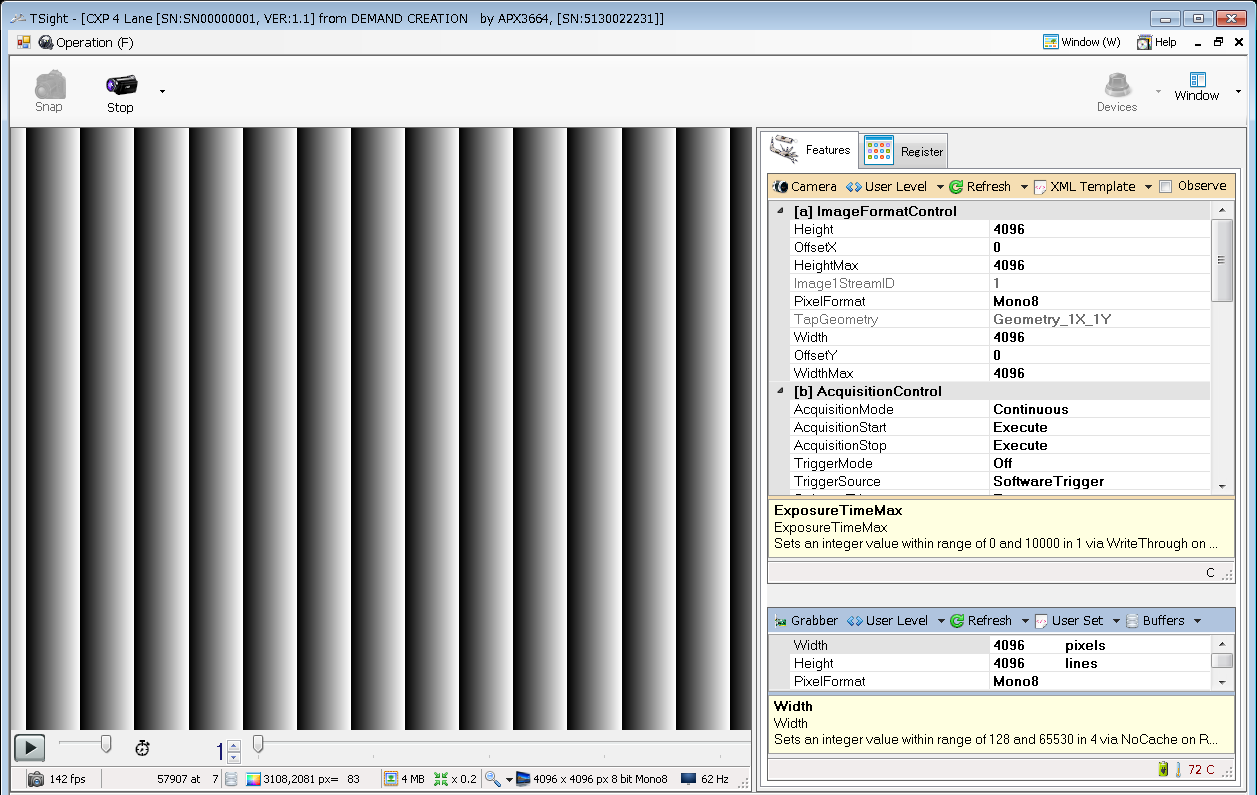

Performace
  • 6.25Gbps×4 lanes
  • AVAL DATA Frame Grabber APX-3664
  • 2048×2048 8bit monochrome image sending continuously
  • 2048×2048×8bit×530fps=17.78Gbps
Evaluation Platform
Evaluation and development is possible by using KC705, SP605, etc.
Please inquire for more details.
Product Number, Licensing
This IP core is provided by netlist site license or source code site license.
Both licenses have permanent usage rights with limited update support.
Product includes : VHDL source code or netlist, reference design with VHDL source and MicroBlaze or NIOS design, simulation model and simulation vector.

Permanent netlist site license. Netlist is provided.
Device family is limited.
6 month update support.

DC-CXP-L1-NET-XXX 1 lane implementation
DC-CXP-L4-NET-XXX 4 lane implementation

※XXX is replaced by device family name.
Example: For Kintex-7, croduct number is DC-CXP-L1-NET-K7. Please inquire for more details.
This license can be used for any devices in same family.

Permanent source code site license.
Source codes are provided.
1 year update support.

DC-CXP-L4-SRC 4 lane implementation
※1 lane and 2 lane implementation are not sale in this license.
Source codes for all supported devices will be privided. Please inquire for unsupported devices.

DC-CXP-SUPPORT-1Y : 1 year update support. Customized orders are available.
Pamphlet Download
CoaXpress IP Core Product Brief
Reference Design Guide Download
Actual reference design for camera function is also provided.
CoaXpress IP Core Reference Design Guide
